Công suất: 600 W RMS
Trở kháng: 8 ohms
Maximum SPL, @ 10% THD: 122 dB@10% THD Full-Space (60 Hz–150 Hz) 128 dB@10% THD Half-Space (60 Hz–150 Hz)
Độ nhạy 1W/1m: 96 dB (50 Hz- 200 Hz) Full space 102 dB (50 Hz- 200 Hz) Half space
Tần số đáp ứng: (+/- 3 dB) 47 Hz- 150 Hz
Cấu tạo loa: 1x 15“ neodymium woofer
Kết nối: 2 x Speakon NL 4
Kích thước (W x H x D): 58.3 cm x 57.3 cm x 64 cm
Trọng lượng : 38 kg

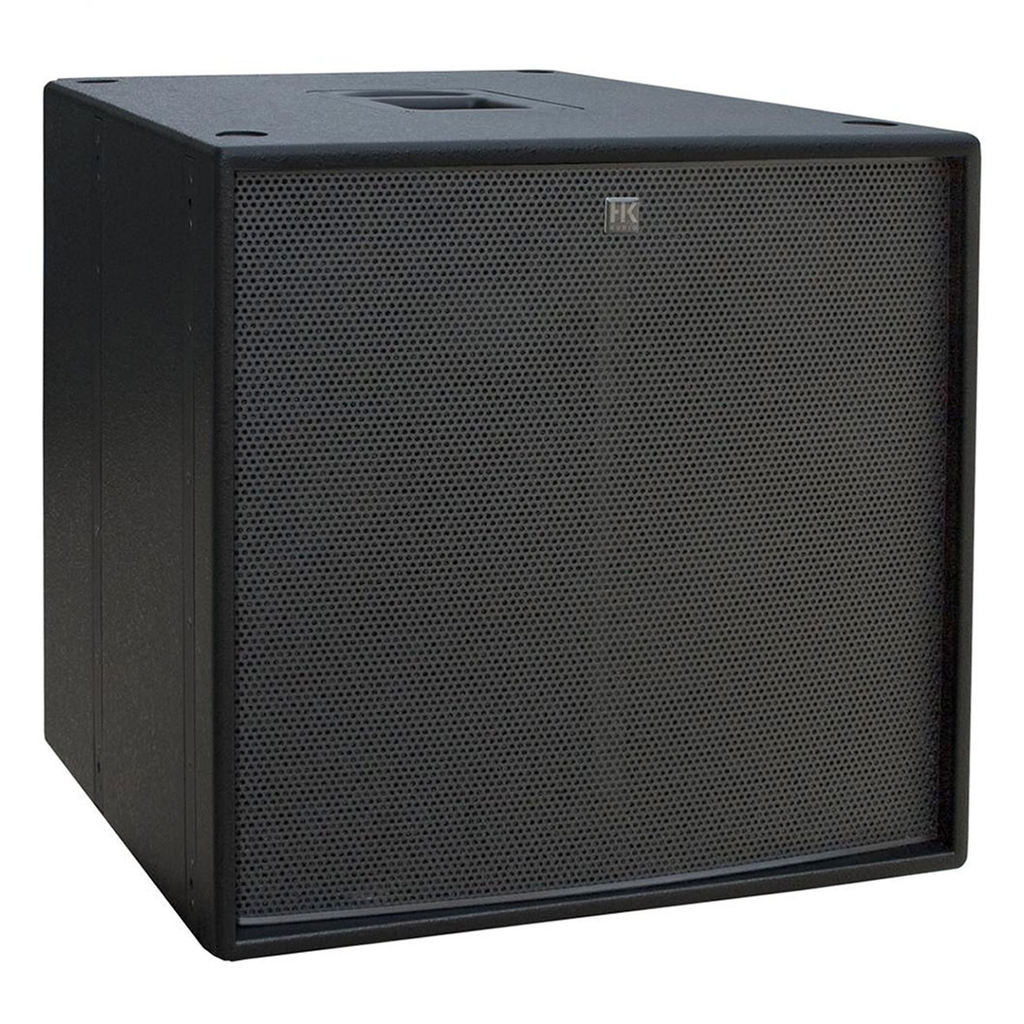

Professional, flyable subwoofer with 15″ neodymium woofer in bass reflex cabinet. Weather-resistant 18 mm birch plywood with two-component coating, standard in black or white (RAL colours optional). Powder-coated steel grille with foam backing, two built-in MultiGrips.
Laterally recessed flying rails allow mechanical compatibility with the CADIS system. Attachment to CADIS rigging/stacking frame and/or mounting of CADIS connector frame for combination with CAD 208.
Also serves as a groundstack base for CADIS systems.
| Product name | CAD 115 Sub |
| Power-handling, nominal (RMS) | 600 W |
| Power-handling, program | 1200 W |
| Power-handling, peak | 2400 W |
| Sensitivity 1 W/1 m | 96 dB |
| Frequency response +/- 3 dB (processed) | 47 Hz - 150 Hz |
| Frequency response -10 dB (processed) | 42 Hz - 150 Hz |
| Max. SPL @ 10 % THD/1 m (EN 60268-21, full space) | 124 dB |
| Directivity (horizontal x vertical) | omnidirectional |
| Electrical impedance | 8 ohms |
| Low/mid transducer | 1 x 15" with neodymium magnet and 3" voice coil |
| High frequency driver | not applicable |
| Crossover/cut-off frequency | requires external DSP filtering |
| DSP filters | Filters for Lab.gruppen IPD, Lake und Powersoft Armonía+ |
| Connections | 2 x Speakon NL4 (standard), connection terminal outside (optional), PG gland with internal connection terminal (optional) |
| Mounting points | integrated 4-point-flyware |
| Cabinet material | Birch plywood |
| Front grille | powder coated steel grille with foam backing |
| Finish | Two-component coating, black and white as standard, all RAL colors possible |
| Carrying handles | 2 x MultiGrip |
| Protection class (IP code EN 60529) | IP 44 |
| Optional accessories | Rigging/stacking frame, connector frame, sub connector set |
| Dimensions (W x H x D) | 573 x 583 x 640 mm |
| Weight | 38.0 kg |
