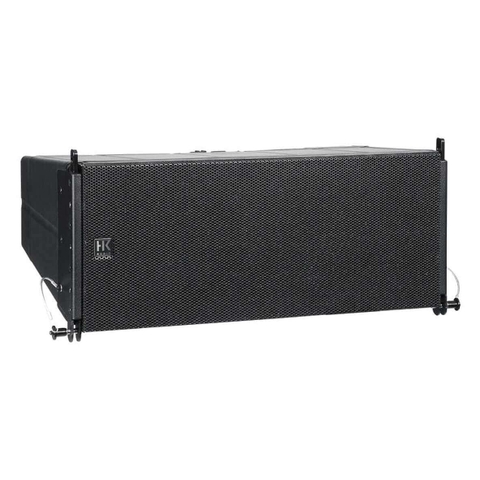

Loa HK linearray chịu nước và độ ẩm cao CAD 208

Loa HK linearray chịu nước và độ ẩm cao CAD 208

Loại: Karaoke Thương hiệu: HK AUDIO

88.500.000₫

Công suất (RMS) : 250W

Công suất tối đa : 500W -1,000W

Dải tần : 75/100Hz - 18kHz

Trở kháng : 8Ohms

Độ nhạy : 101dB

SPL đỉnh: 138 dB @ 10% THD

Điểm phân tần : 1,8kHz, 12dB/Octave

Loa thành phần: 2 x 8'' + 2 x 1'' HF

Kết nối: 2 x Speakon NL4

Kích thước (HxWxD): 23.8 x 57.8 x 37.3 cm

Trọng lượng : 17.5kg

Mô tả
Thông số kỹ thuật
Phụ kiện
Phần mềm

Passive line array for installations, 500 W (program), 8 ohms impedance, 2 x 8″ low/midrange transducers, 2 x 1″ HF drivers, directivity 100° x 15° (horizontal x vertical), 136 dB max. SPL (10 % THD, applies to 4 x CAD208), 75 Hz – 18 kHz (- 10 dB), 2 x Speakon NL4 (other connectors optional)

Professional line array for installations, equipped with two 8″ low/midrange transducers with bass reflex tuning and special λ/4 resonator. Two 1″ HF drivers on a common wave guide with wide opening angle. Integrated rigging hardware with 1.5° steps, adjustable from 0° to 15°.

Weather and UV-resistant polyamide cabinet and extensive mounting accessories for indoor and outdoor use. In the standard version with Speakon NL4 limited weather resistance. Other connection solutions, such as PG glands, are optional.

For combination with the mechanically compatible, flyable CAD 115 subwoofer. Available in black and white as standard, RAL colors optional.

Certification: Protection class IP 44 (EN 60529).

Product name	CAD 208
Power-handling, nominal (RMS)	250 W
Power-handling, program	500 W
Power-handling, peak	1000 W
Sensitivity 1 W/1 m	95 dB
Frequency response +/- 3 dB (processed)	100 Hz - 18 kHz
Frequency response -10 dB (processed)	75…100 Hz - 18 kHz (depending on length of the array and selected filters)
Max. SPL @ 10 % THD/1 m (EN 60268-21, full space)	136 dB (4 x CAD 208)
Directivity (horizontal x vertical)	100° x 15°
Electrical impedance	8 ohms
Low/mid transducer	2 x 8" with ferrite magnet and 1.5" voice coil
High frequency driver	2 x 1" with ferrite magnet and 1" voice coil
Crossover/cut-off frequency	integrated passive crossover (2.5-way), 1200/2100 Hz
DSP filters	Filters for Lab.gruppen IPD, Lake und Powersoft Armonía+

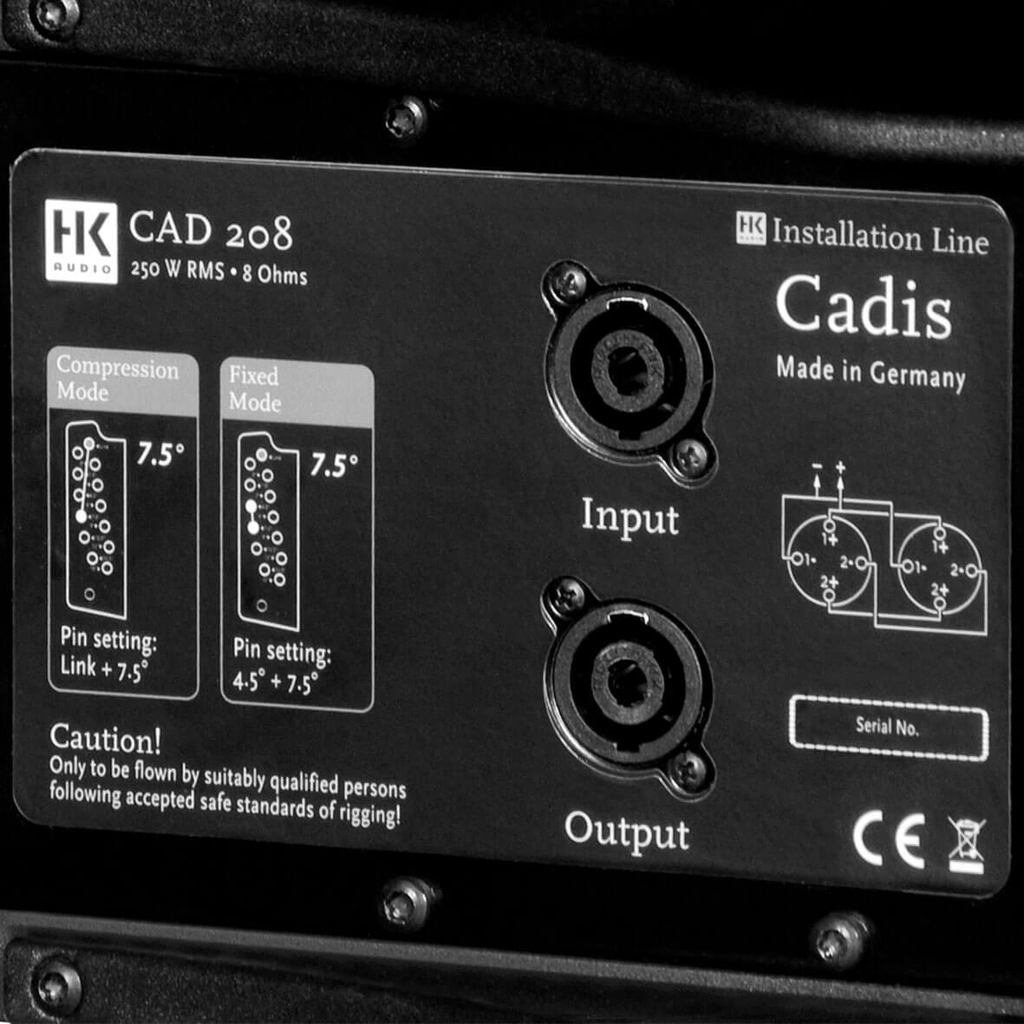

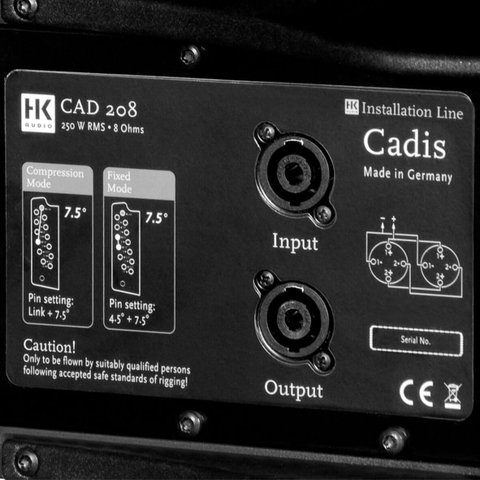

Connections	2 x Speakon NL4 (standard), connection terminal outside (optional), PG gland with internal connection terminal (optional)
Mounting points	integrated 3-point-flyware
Cabinet material	Polyamide
Front grille	powder coated steel grille with foam backing
Finish	through-dyed polyamide, black and white as standard, all RAL colors possible
Carrying handles	none
Protection class (IP code EN 60529)	IP 44
Optional accessories	Rigging/stacking frame, connector frame, ceiling mount, wall mount
Dimensions (W x H x D)	581 x 238 x 373 mm
Weight	17.5 kg
