HK LINEAR 5 112F

Loại: Karaoke Thương hiệu: HK AUDIO
Liên hệ

☑️ Model: LINEAR 5 112F

☑️ Công suất: 500W

☑️ Cấu hình: 1x 12″

☑️ Độ nhạy: 129 dB

☑️ Tần số: 79 Hz – 18 kHz

☑️ Bảo hành: 12 tháng



PR:O 15 – THE GERMAN AUDIO STANDARD

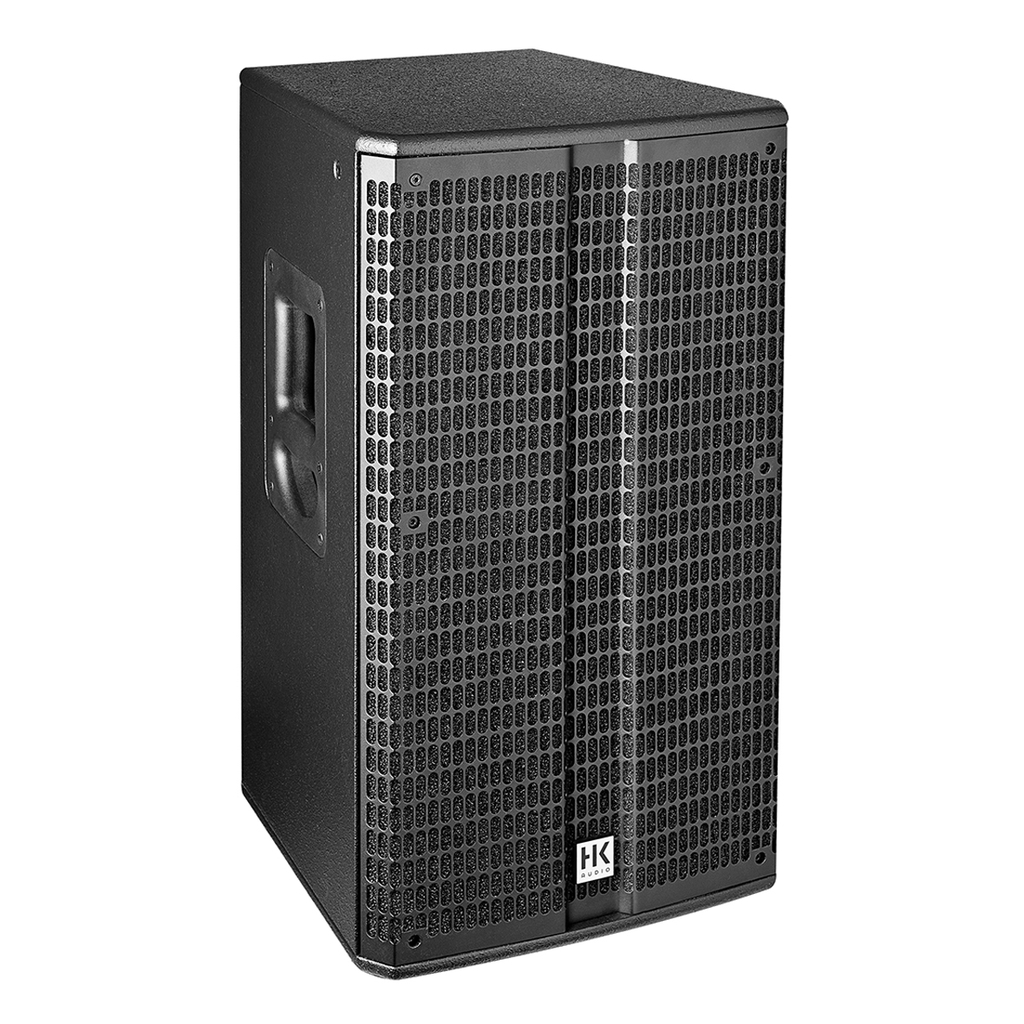

This 12″/1″ fullrange mid/ high unit delivers the most powerful bass performance in its class and features an asymmetrical horn (60º – 90º x 55º) with an optimized coverage pattern. It also comes with a switchable EQ enabling the cab to be deployed as a standalone fullrange unit and in stereo pairs, as well as a mid/ high unit when combined with a Linear subwoofer.

  • Application: Mid/High unit, Stand Alone System
  • Powerhandling(Continuous): 500 Watt (2000W Peak)
  • 12″ Speaker with 2,5″ voice coil
  • 1″ Driver with 1,75″ voice coil
  • 134 dB Max SPL Peak @ 10% THD (halfspace)
  • Asymmetrical horn (60°-90° x 55°), rotatable
  • Rugged hybrid (birch multiplex /MDF) housing
  • EQ switch (Flat / Contour)
Power-handling nominal (RMS) 500 W
Power-handling, program 1000 W
Frequency response +/-3 dB 79 Hz – 18 kHz
Frequency response -10 dB 60 Hz – 19 kHz
Sensitivity 1 W @ 1 m 103 dB half space
Max. SPL @ 10% THD 129 dB half space (79 Hz – 12 kHz average)
Max. SPL Peak @ 10% THD 135 dB half space
Electrical impedance 8 ohms
Protective circuits PTC circuit
Low-/mid speaker 1x 12", 2.5" voice coil
HF Driver 1", 1.75" voice coil
Directivity 60°–90° (asymmetrical) x 55° CD-Horn, rotatable
Crossover frequency 1.7 kHz, 12 dB/Oct.

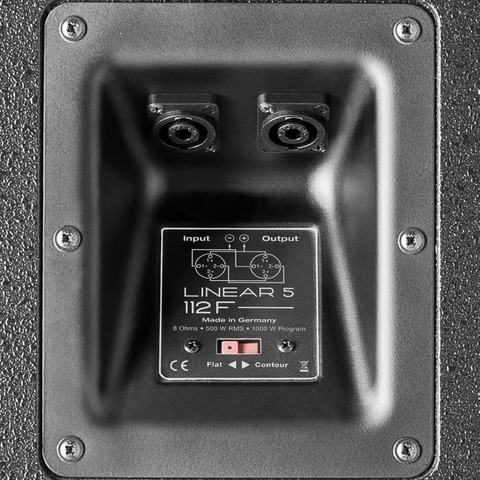

Connections 2x Speakon NL4
Pole mount DuoTilt 3°/7°
Rigging points 3x M8 (AP-8)
Carrying handles 2x MultiGrip
Housing Hybrid (birch multiplex/MDF)
Finish Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 37 x 66.8 x 36.5 cm 14-9/16 x 26-19/64 x 14-3/8"
Weight 23.9 kg / 52.7 lbs
