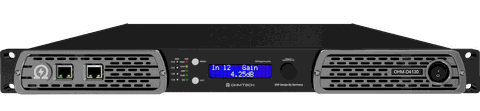

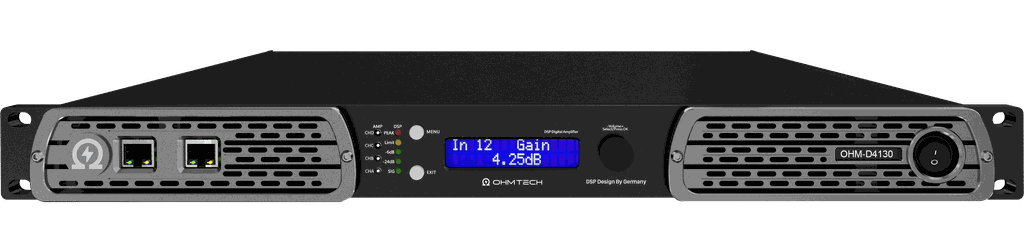

Amplifier Ohmtech OHM-D4130

Loại: Ohmtech Thương hiệu: Ohmtech
Liên hệ

Amplifier 4 channel with DSP, Ethernet
Stereo Mode: 8Ω - 4*1300
Stereo Mode: 4Ω - 4*2400
Stereo Mode: 2Ω - 4*3000
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x480mm/ 13KG

TAKE CONTROL

Harnessing the power of the internal DSP

The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-F amplifier.

It is simple to monitor and edit the OHMTECH remotely.

OHMControl Remote Operation Software





STABLE DOWN TO 2 OHMS

Huge output power and stable down to 2 Ohms

The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.

DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.

ETHERNET X 2

Control is via the Ethernet network connectors on the front.

With the supplied control software all parameters can be edited and all performance functions can be remotely monitored.



SPECIFICATIONS



Amplifier Ohmtech OHM-D4130

Amplifier 4 channel with DSP, Ethernet
Stereo Mode: 8Ω - 4*1300
Stereo Mode: 4Ω - 4*2400
Stereo Mode: 2Ω - 4*3000
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x480mm/ 13KG
