Harnessing the power of the internal DSP
The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-F amplifier.
It is simple to monitor and edit the OHMTECH remotely.
OHMControl Remote Operation Software
Huge output power and stable down to 2 Ohms
The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
ETHERNET X 2
Control is via the Ethernet network connectors on the front.
With the supplied control software all parameters can be edited and all performance functions can be remotely monitored.

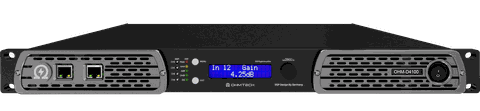

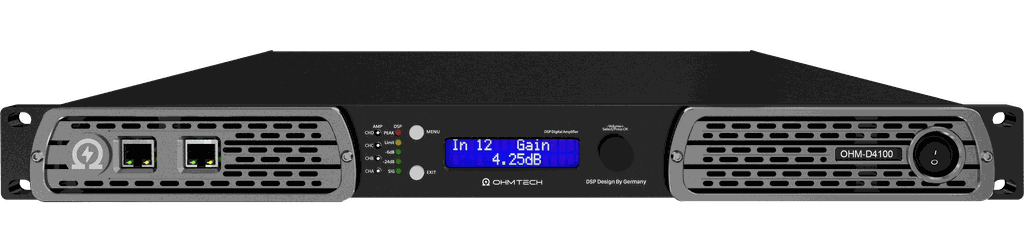

Amplifier 4 channel with DSP, Ethernet
Stereo Mode: 8Ω - 4*1000
Stereo Mode: 4Ω - 4*1700
Stereo Mode: 2Ω - 4*2890
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x480mm/ 13KG
