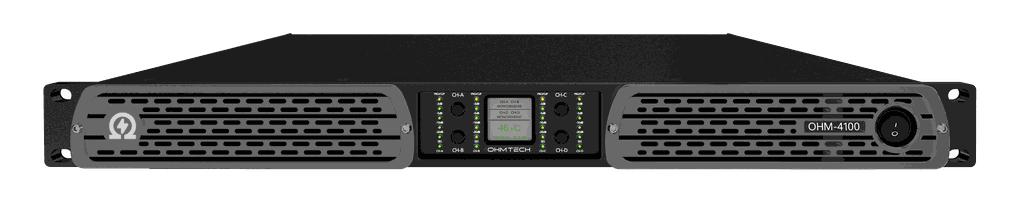

4 Channel Class D Digital power amplifier
Mini 1U size,convenient for Touring Applications
Suit for Top speaker, full range speaker,Line array;
Work Under 2Ω steadily !
Precise and Reasonable circuit structure
Bring supper reliable sound
Original Neutrik XLR*/Speakon connectors
Temperature protection;Over current protection;Short circuit protection built-in
Huge output power and stable down to 2 Ohms
The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
The size is 437mm inside of the device(without the cover plate and front panel).The size is around 472mm of the complete device,but a little bit different size in the different front panel.Some series with different size that had not shown,please learn it in the parameter.
Tunnel through cooling system
Cold air comes in from the front panel of the equipment, forms a duct through the radiator to take the heat away and out from the rear panel of the equipment.
Thông số kỹ thuật:
Amplifier 4 channel
Stereo Mode: 8Ω - 4*1300
Stereo Mode: 4Ω - 4*1700
Stereo Mode: 2Ω - 4*2890
Frequency Response: 20Hz-20kHz,+0/-1dB
Total Harmonic Distortion (THD): <0.5%,20Hz-20kHz
Damping Factor (8Ω): >5000 @ 20-200 Hz
Signal-to-Noise Ratio: >100dB)
Size/ Weight: 482x44x480mm/ 13KG
